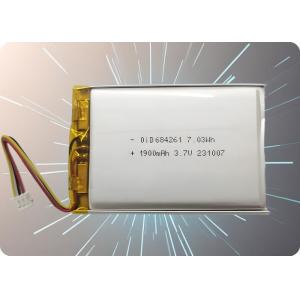

3.7V 2000mAh Rechargeable Lipo Battery 500 Cycles 1.5A Discharge

Brand Name : OiD

Model Number : OiD684261C-2000

Certification : China

Place of Origin : Compliant with GB/T 18287-2013, IEC/EN61960, UL1642 standards

MOQ : 100pcs

Price : $0.5 ~ $100.0 / pcs

Delivery Time : 3 ~ 7 days for storage

Payment Terms : TT,L/C,Western Union

Name : 3.7 V 2000mah Lipo Battery

Battery Type : 3.7V, 2000mAh Rechargeable

ODM : Free custom design for packs

High Energy Density : 250-300Wh/kg

Superior Cold Weather Performance : Reliable in Extreme Cold (-20°C to 60°C)

Cycle Life : 500+ cycles

Charging/ Discharging : 1500mA / 1500mA

Flexible Form Factor : Thin, Customizable Pouch Design Lithium Ion Battery

Contact Now

OiD684261C-2000 Lithium Polymer Battery 3.7V 2000mAh 1.5A Discharge Current 500 Cycles

Product Name:
OiD684261C-2000 Lithium Polymer Battery

Advantages:

High energy density for extended usage
Long cycle life with reliable performance
Compact and lightweight design
Built-in protection circuit for enhanced safety

Specifications:

Parameter	Value
Model	OiD684261C-2000
Nominal Voltage	3.7V
Minimum Capacity	1900mAh (0.2C discharge)
Typical Capacity	2000mAh (0.2C discharge)
Charging Voltage	4.2V
Discharge Cut-off Voltage	3.0V
Standard Charging Current	400mA
Max Charging Current	1500mA (20°C~45°C), 0.5C (10°C~20°C), 0.2C (0°C~10°C)
Standard Discharging Current	400mA
Max Discharging Current	1500mA (25°C~60°C), 0.5C (0°C~25°C), 0.2C (-20°C~0°C)
Weight	Approx. 36.0g
Shipment Voltage	3.90±0.05V
Battery Impedance	≤200mΩ
Connector	JST ZHR-3P, JCTC Housing: 11501H00-3P-HF, Contact: 11501TOP-2E-NK

Cycle Life:

Condition	Performance
Charge/Discharge Cycles	500 cycles at 0.2C, 23±2℃
Capacity Retention	≥80%

Discharge Curve:
3.7V 2000mAh Rechargeable Lipo Battery 500 Cycles 1.5A Discharge

Operating Temperature Range:

Condition	Temperature Range
Charging	0°C ~ 45°C
Discharging	-20°C ~ 60°C
Storage (50% SOC)	-10°C ~ 25°C (12 months, ≥85%), -10°C ~ 45°C (6 months, ≥85%), -10°C ~ 55°C (1 month, ≥90%)

Certifications:

Compliant with GB/T 18287-2013, IEC/EN61960, UL1642 standards

Key Features:

Overcharge, over-discharge, and short-circuit protection
High-temperature and low-temperature performance
RoHS compliant

Applications:

Portable electronic devices
Medical devices
IoT devices
Wearable technology
Power banks

3.7V 2000mAh Rechargeable Lipo Battery 500 Cycles 1.5A Discharge

Usage Warnings & Precautions:

Avoid overcharging or over-discharging the battery.
Do not expose the battery to extreme temperatures or direct sunlight.
Use only compatible chargers and devices.
Do not disassemble or puncture the battery.

Storage Guidelines:

Store at 20±5°C for optimal performance.
Maintain a state of charge (SOC) of 50% for long-term storage.
Avoid storing in high humidity or corrosive environments.

Warranty & Disclaimer:

12-month limited warranty against manufacturing defects.
The manufacturer is not liable for damages caused by improper use or handling.
